Toshiba Releases 600V Small Intelligent Power Devices for Brushless DC Motor Drives

Logo

– Surface mount type small package helps reduce mounting area and the size of circuit boards for motor drives –

KAWASAKI, Japan–(BUSINESS WIRE)–Aug. 24, 2023

Toshiba Electronic Devices & Storage Corporation (“Toshiba”) has launched two 600V small intelligent power devices (IPD) for brushless DC motor drive applications such as air conditioners, air cleaners, and pumps. Volume shipments of “TPD4163F” and “TPD4164F,” which have output current (DC) ratings of 1A and 2A, respectively, start today.

This press release features multimedia. View the full release here: https://www.businesswire.com/news/home/20230823689519/en/

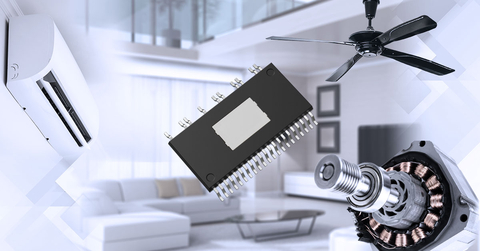

Toshiba: 600V small intelligent power devices for brushless DC motor drives. (Graphic: Business Wire)

Toshiba: 600V small intelligent power devices for brushless DC motor drives. (Graphic: Business Wire)

Both new products are housed in a surface mount type HSSOP31 package, which reduces the mounting area by approximately 63% against Toshiba’s previous products[1]. This makes smaller motor drive circuit boards possible, and also reduces the height of the motor.

As power supply voltage may fluctuate significantly in regions with unstable power supply, the voltage has been increased from the 500V of Toshiba’s previous products[1] to 600V, which improves reliability.

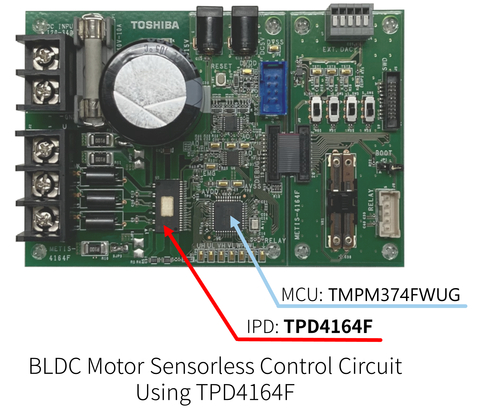

A “Reference Design for Sensorless Brushless DC Motor Drive Circuit” that utilizes the functions of the new TPD4164F with a TMPM374FWUG microcontroller with vector control engine is available from today on Toshiba’s website.

Toshiba will continue to expand its product line-up for energy-saving motor controls with various packages and improved device characteristics that contribute to design flexibility and carbon neutrality.

Note:

[1] DIP26 package products (end-of-life products): TPD4123K, TPD4123AK, TPD4144K, TPD4144AK, TPD4135K and TPD4135AK

Applications

Brushless DC motors for home appliances

  • Fan motors (air conditioner, air cleaner, ventilation fan, ceiling fan etc.)
  • Pumps

Features

  • Small package

    Surface mount type HSSOP31: 17.5mm×11.93mm (typ.), t=2.2mm (max)

  • High power supply voltage rating to secure operation margin for power supply voltage fluctuations: VBB=600V

Main Specifications

(Ta=25°C unless otherwise specified)

Part number

TPD4163F

TPD4164F

Absolute

maximum

ratings

Power supply voltage VBB (V)

600

Output current (DC) Iout (A)

1

2

Operation

ranges

Operating power supply voltage VBB (V)

max

450

Electrical

characteristics

Output saturation voltage

VCEsatH (V)

typ.

2.6

(IC=0.5A)

3.0

(IC=1A)

VCEsatL (V)

FRD forward voltage

VFH (V)

typ.

2.0

(IF=0.5A)

2.5

(IF=1A)

VFL (V)

Package

Type

Surface mount

Toshiba’s Name

HSSOP31

Size (mm)

17.5×11.93 (typ.), t=2.2 (max)

Protect function

Over-current/thermal shutdown/under-voltage/shutdown function controlled by SD pin

Sample Check & Availability

Buy Online

Buy Online

Follow the links below for more on the new product.

TPD4163F

TPD4164F

Follow the link below for more on Toshiba Intelligent Power ICs.

Intelligent Power ICs

To check availability of the new products at online distributors, visit:

TPD4163F

Buy Online

TPD4164F

Buy Online
